Nam Ngum 3 (NN3) hydropower project has a 220 meter high hyperbolical arch dam located on the Nam Ngum (river) 10 km west of Ban Long Chieng, Xieng Khouang province, Lao PDR. The dam structure is one of the highest of its type in the world and the highest in Laos. Nam Ngum is pronounced like "Nam Nyum".

The dam structure is about 4.5 km upstream from the confluence of the Nam Pha with the Nam Ngum River.

Caution: The Nam Ngum 3 hydropower project was revised with new developers and owners around year 2014 and much info on the internet prior to 2015 is outdated and misleading. The old project was 440 MW capacity while the new revised version is 480 MW.

Nam Ngum 3 Dam image below:

Nam Ngum 3 Power Company Ltd. is the owner and developer of the project - a company originally owned by Electricite Du Laos (EDL 20%), Charoen Sekong Energy Company (CSE 55%), and EGAT International Company (EGATi 25%). However, it now seems that Charoen Sekong Energy Company has sold some of its shares to Thailand-based Gulf Energy Development (GED) bringing CSE ownership down to 31% while GED owns 24%.

Current ownership in 2023 may be - EDL 20%, CSE 31%, GED 24%, EGATi 25%

Nam Ngum 3 Dam location shown in image below at coordinates - 19°04'58.8"N 102°52'40.8"E (19.083, 102.878)

The Nam Ngum 3 project is a Chinese-funded 480 MW hydroelectric power project constructed by mostly Chinese contractors and was still under construction in 2022. The project was designed and contracted by Power Construction Corporation of China. Sinohydro International Engineering Company is the engineering, procurement, and construction (EPC) contractor for the project.

Construction began in November 2015 and the Commercial Operation Date is planned to be in 2023. The project will operate under a concession period of 27 years.

According to the Resettlement & Ethnic Minority Development Plan, 758 households may be physically and/or economically impacted by the project.

Estimated cost of the project is US $1.4 billion with funding from Chinese EXIM Bank.

Concept images below of what Nam Ngum 3 project is planned to look like:

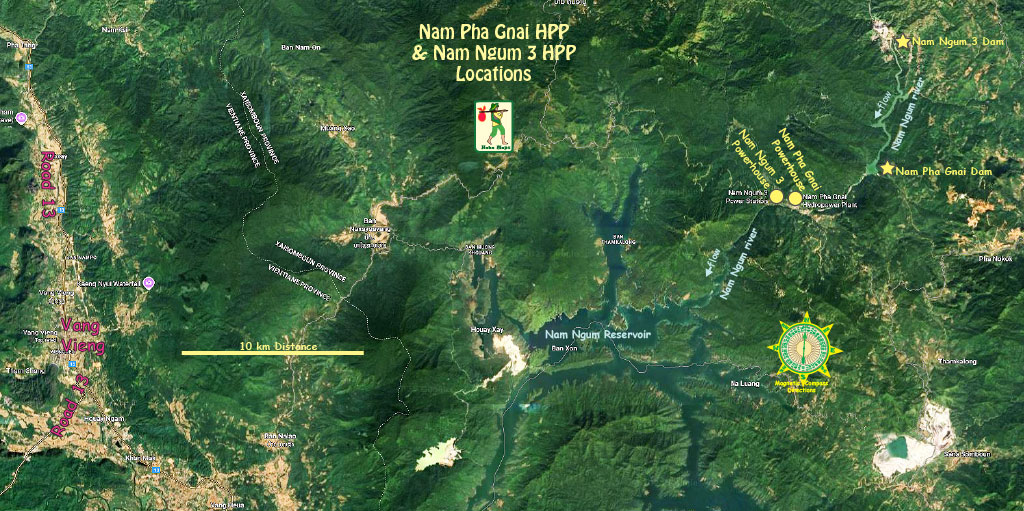

Nam Ngum 3 and Nam Pha Gnai projects layout map below - they are close together:

When the Nam Ngum 3 project goes online (in late 2022?) it will divert water from the Nam Ngum river into an underground tunnel and down to its powerhouse located near the Nam Ngum river downriver from where the Nam Pha Gnai hydropower project is located. This will cut-off and drastically reduce the flow from the Nam Ngum river into the Nam Pha Gnai project.

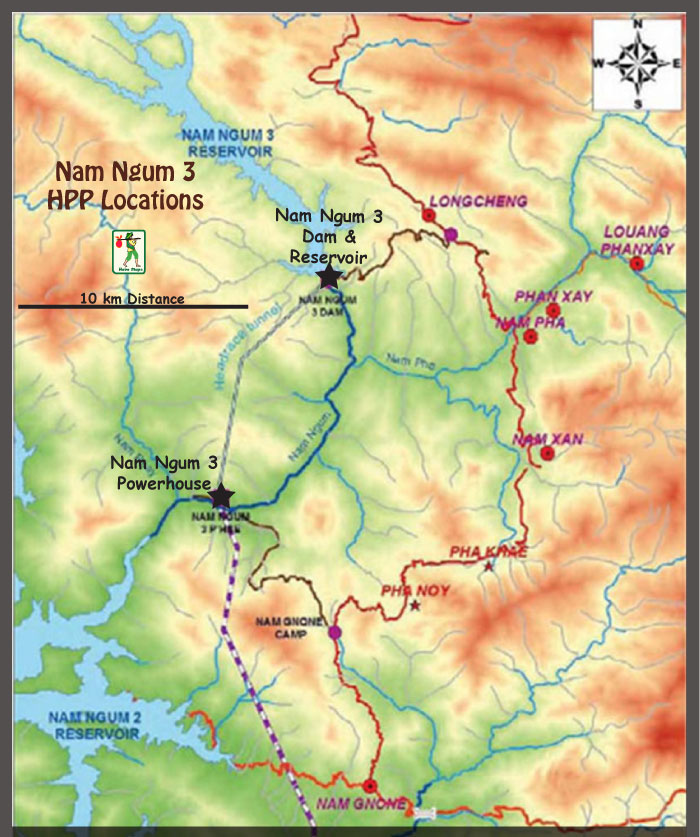

Nam Ngum 3 is located upstream of the Nam Ngum 2 Reservoir as shown below:

The 480 MW hydropower facility will be capable of generating up to 2,345 GWh of electricity annually.

The project's concrete-faced rock dam is 210 meters high, 10 meters wide with a crest length of 395 meters.

The dam has a spillway and three radial gates - each 14.5 meters wide and 18 meters high.

The water diversion system includes a 10.5 km-long reinforced concrete headrace tunnel 9.5 meters in diameter, a 240 meter-high surge shaft with an inner diameter of 15 meters and a 1,623 meter-long pressure shaft.

Nam Ngum 3 catchment area is 3,769 square km and the Nam Ngum 3 reservoir is long, narrow and deep.

At Full Supply Level (723 masl) the surface area of the reservoir is 27.5 square km and its length is about 55 km.

At the Minimum Operation Level (660 meters above sea level) the surface area of the reservoir will cover an area of 9.4 square km. A very large drawdown capacity with this 63 meter difference between Full Suppply Level and Minimum Operation Level.

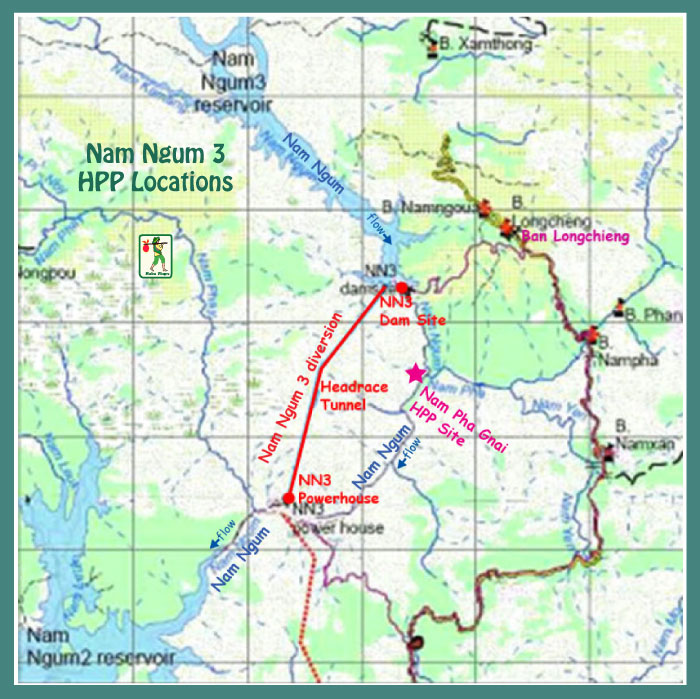

Red line in map below shows a 10.6 km underground headrace tunnel between the Nam Ngum 3 dam site and the powerhouse.

The powerhouse is located 10.6 km southwest of the dam structure on the right bank of Nam Ngum - 78.5 meters long, 60.95 meters high and 22.5 meters wide.

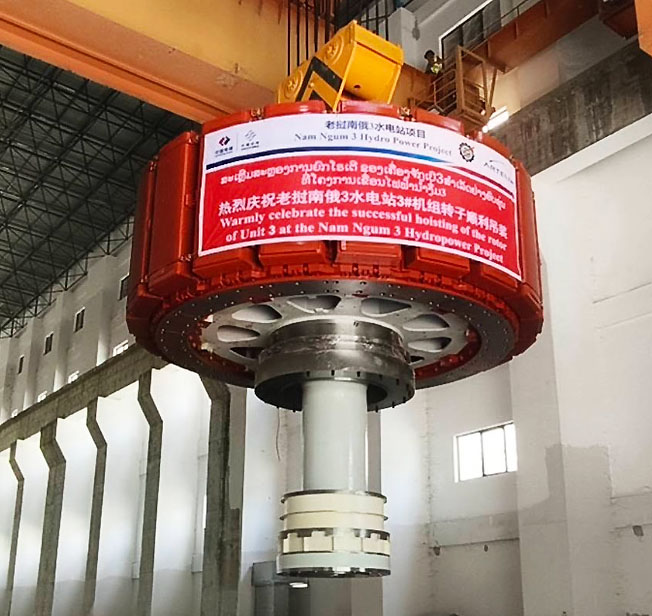

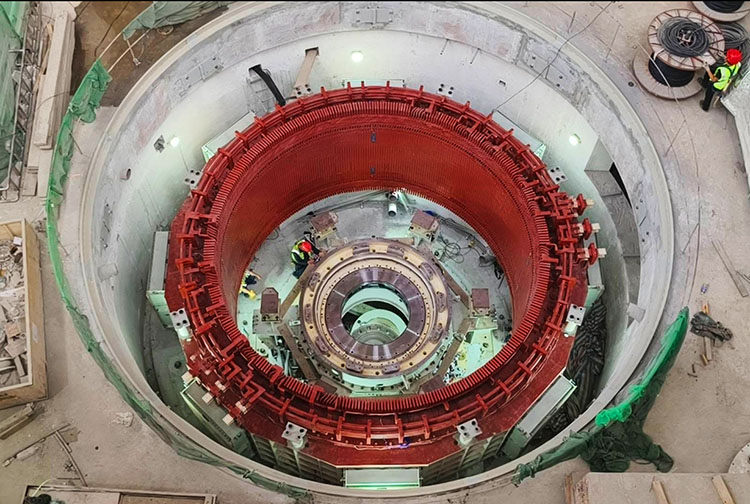

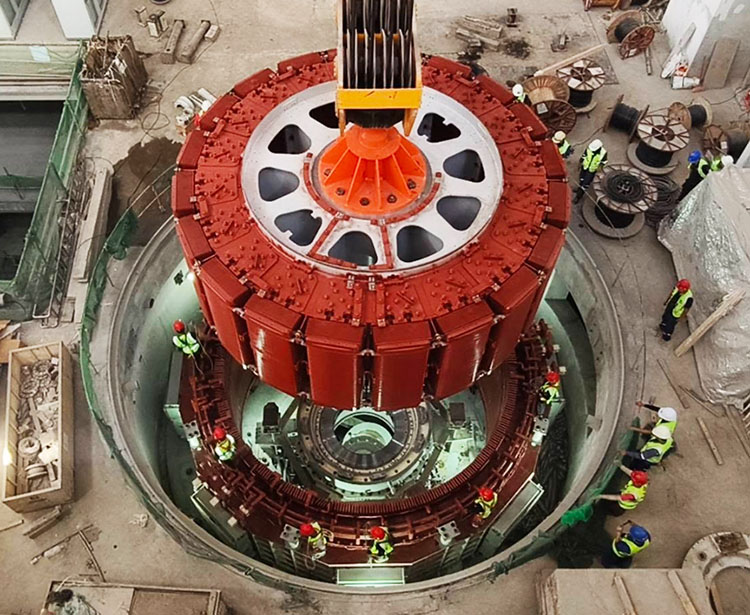

The plant has three 160 MW vertical Francis turbine-generator sets designed to operate with a head of 340 meters.

The project has three sets of 200 megavolt ampere air-cooled transformers along with ancillary equipment, circuit breaker cabinets, 24kV high voltage switchgear and a 115 kV switchyard.

The electricity generated by the Nam Ngum 3 hydroelectric power plant will be evacuated through a 110 km-long, double-circuit 230kV power transmission line connected to the Ban Naphia or Nabong substation.

Most or all of the electric output from the Project will be exported and sold to Thailand. The Thai government has agreed to buy the output and EGAT may soon execute a formal PPA.

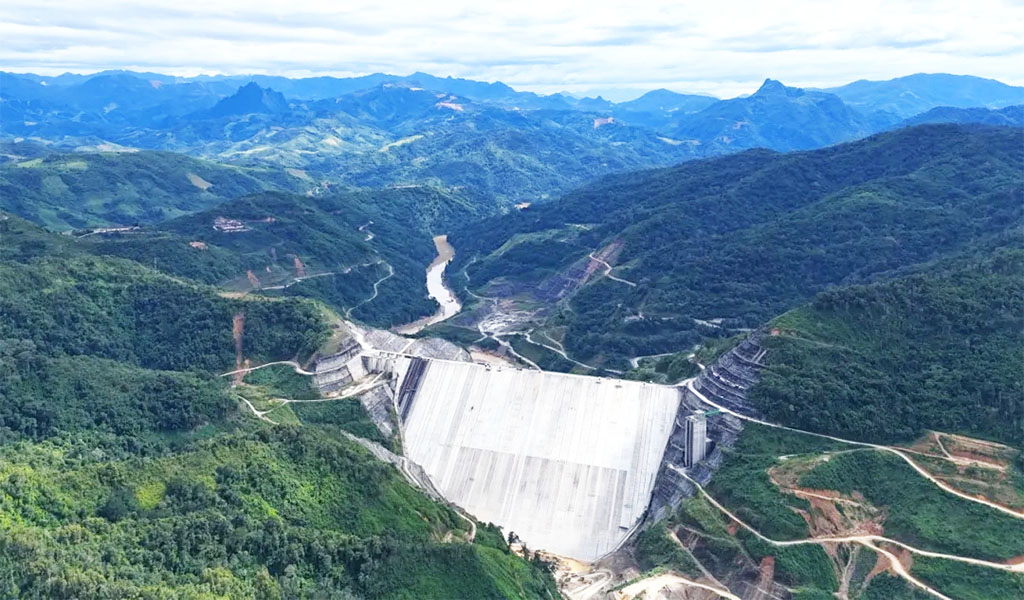

Nam Ngum 3 dam structure images below located at coordinates 19°04'58.8"N 102°52'40.8"E (19.083, 102.878):

Images below shows the Nam Ngum 3 powerhouse site near coordinates 19°00'11.0"N 102°49'25.1"E (19.003059, 102.823636):

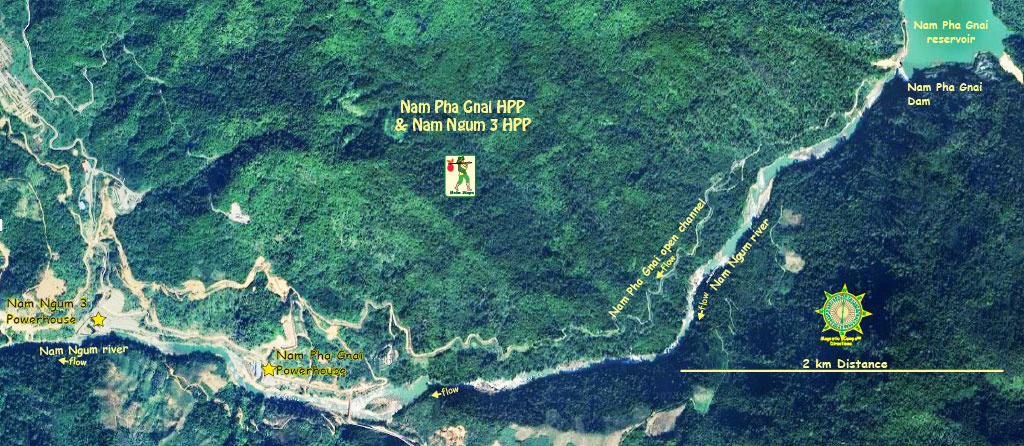

Image below shows Nam Ngum 3 & Nam Pha Gnai plant sites:

Image below may show Nam Ngum 3 surge tank at bottom right of image but it's not verified yet.

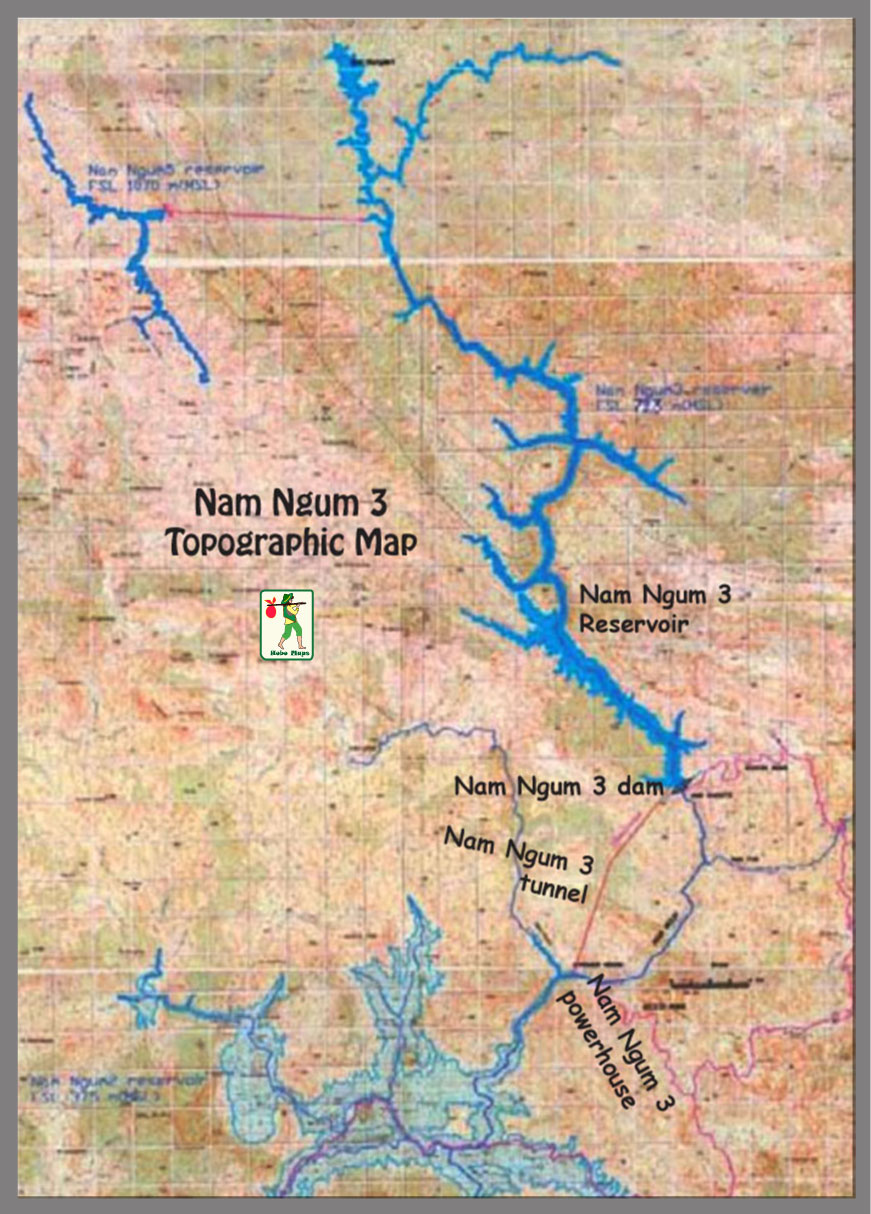

Nam Ngum 3 topographic map image below:

Nam Ngum 3 Dam shown in mid section of map below:

Nam Ngum 3 project details in chart below:

Nam Ngum 3 reservoir elevation of 723 meters above sea level as shown in chart below.

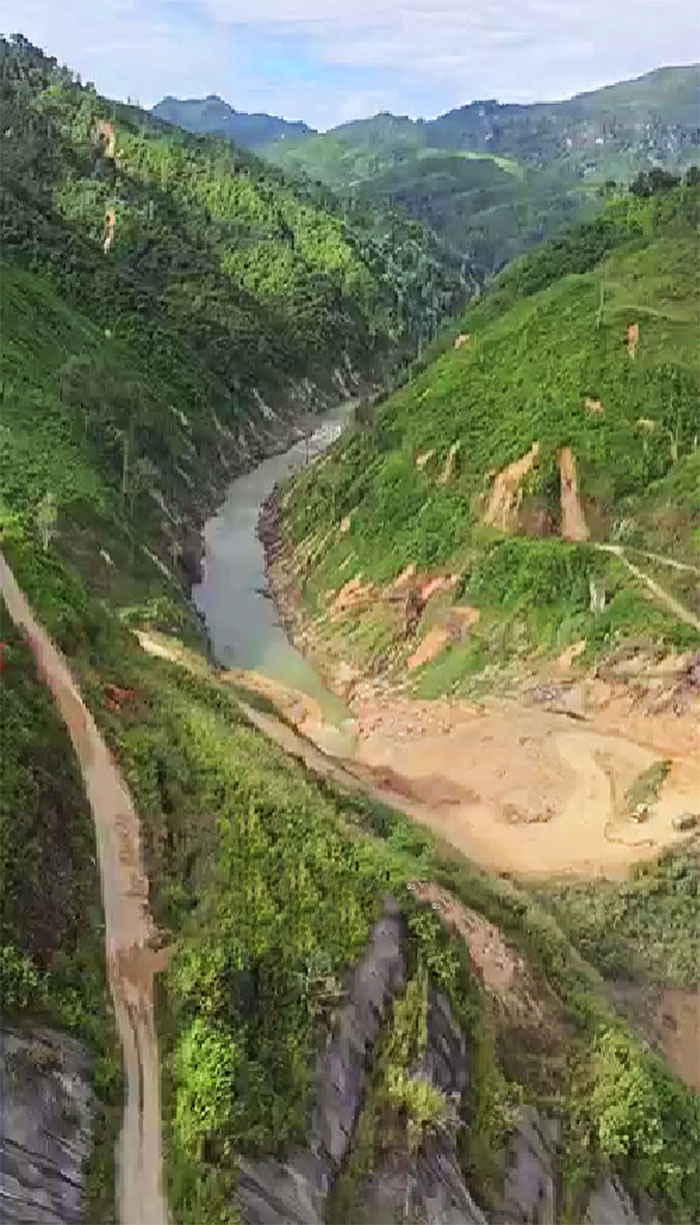

Nam Ngum 3 dam downstream view below:

Steep and deep valley behind Nam Ngum 3 Dam below. The yellow line probably represents Full Supply Level of the reservoir.

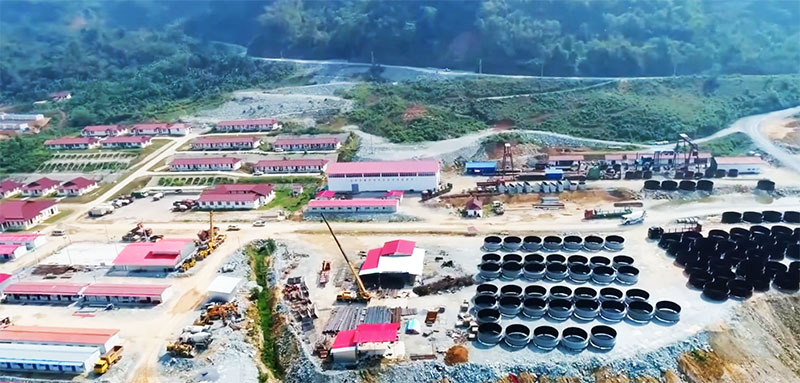

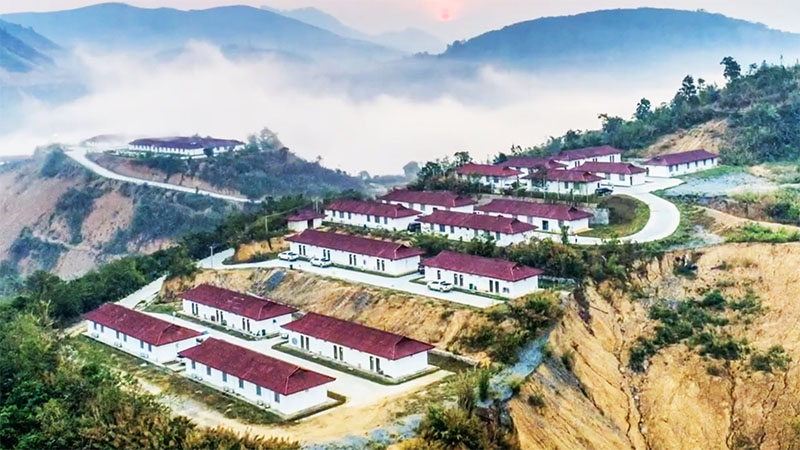

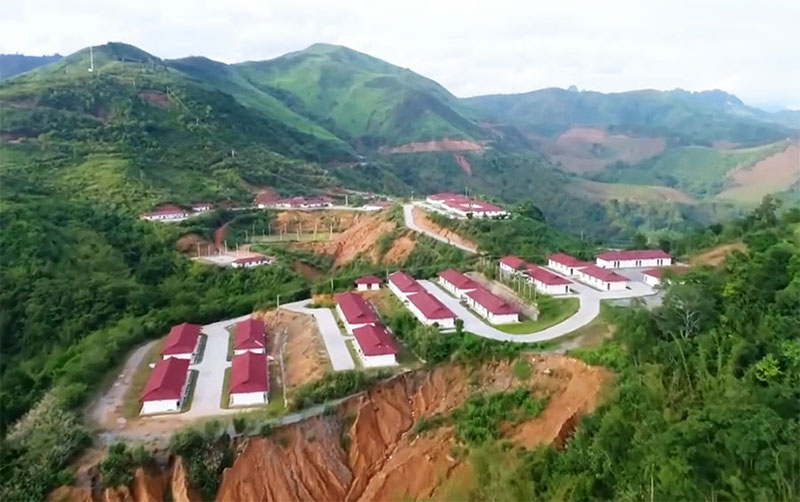

Nam Ngum 3 project construction site images below:

Nam Ngum 3 project location shown in Nam Ngum Basin map below:

Contractors Involved

Sinohydro International Engineering Company signed an engineering, procurement, and construction (EPC) contract for the development of the Nam Ngum 3 hydroelectric power project in 2013.

China Hydropower Construction International Engineering, and China Water Resources, and the Tenth Bureau of Hydropower were subcontracted for the construction works of the project.

Zhefu Company was contracted for the manufacturing and supply of the main hydraulic equipment for the project

Sichaun Ertan International Engineering Consulting Company was engaged by Sinohydro to provide supervision services.

East Asia Investment and Construction Consultant has been engaged as the owner’s engineer and construction supervision contractor.

Right Tunnelling Company is responsible for the construction supervision of the headrace tunnel, dam grouting, and slope protection works.

Artelia France was engaged to provide the project owner’s consultancy services, while Northwest Survey and Design Research Institute was engaged in the design and engineering works of the project.

Nari Group Corporation procured the dam measuring instruments while Siam Tone Company was responsible for the installation of the instruments.

Sichuan Tuojiang Crane Company was subcontracted by the Tenth Bureau of Hydropower for the procurement of the gantry crane, while Yiante Construction provided formworks for the spillway construction activities.

Nam Ngum 3's export of output to Thailand may be by route shown in map below but not yet confirmed. See enlarged version HERE.
